Tile Vent Adaptors

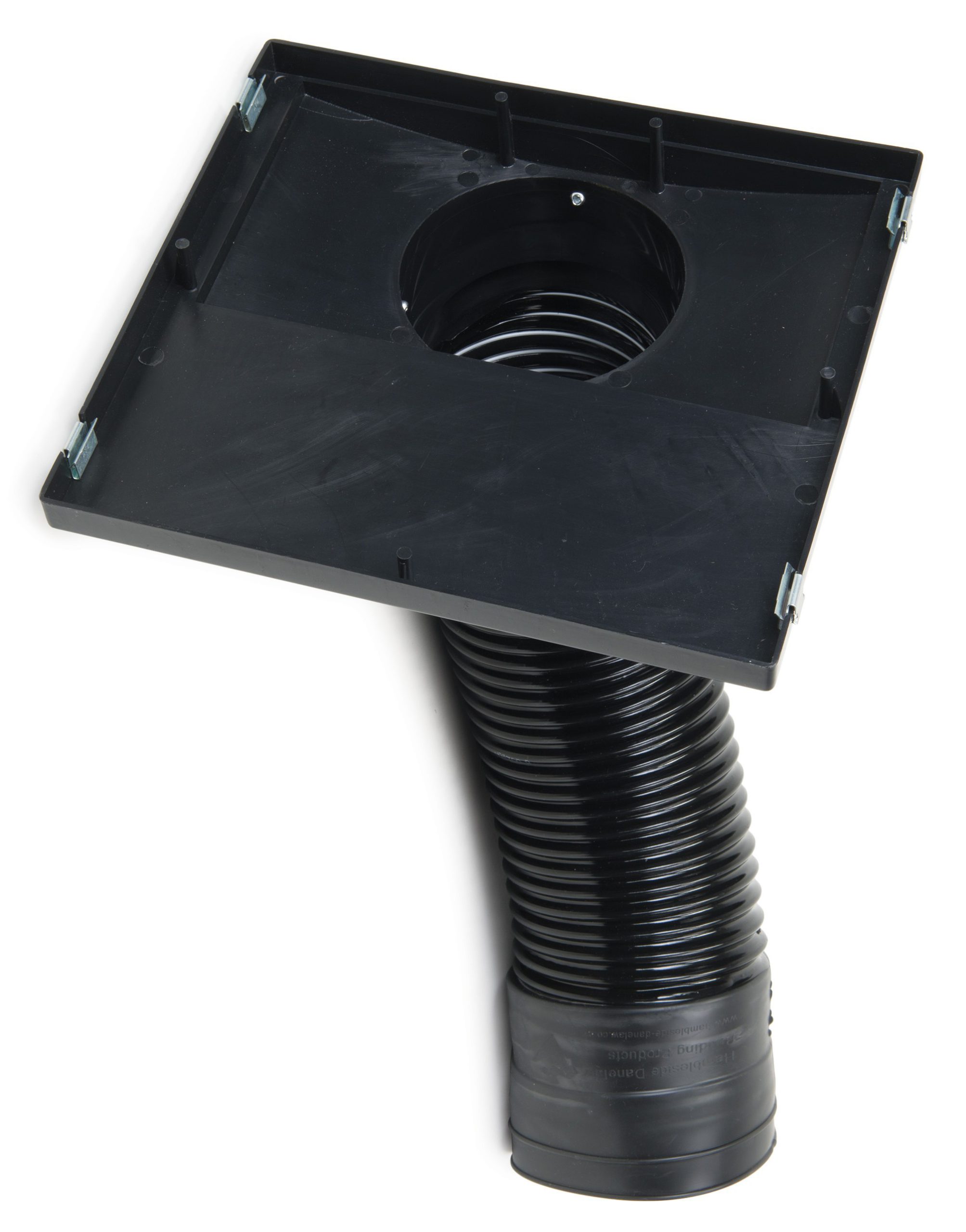

Soil Pipe Adaptor Kit TVSPA
Soil Pipe Adaptor Only TVA
Connects standard 110mm pipework to all HD TV/15 series tile roof vents. May be used for soil ventilation or mechanical extraction. Ventilation Area 8,000mm²

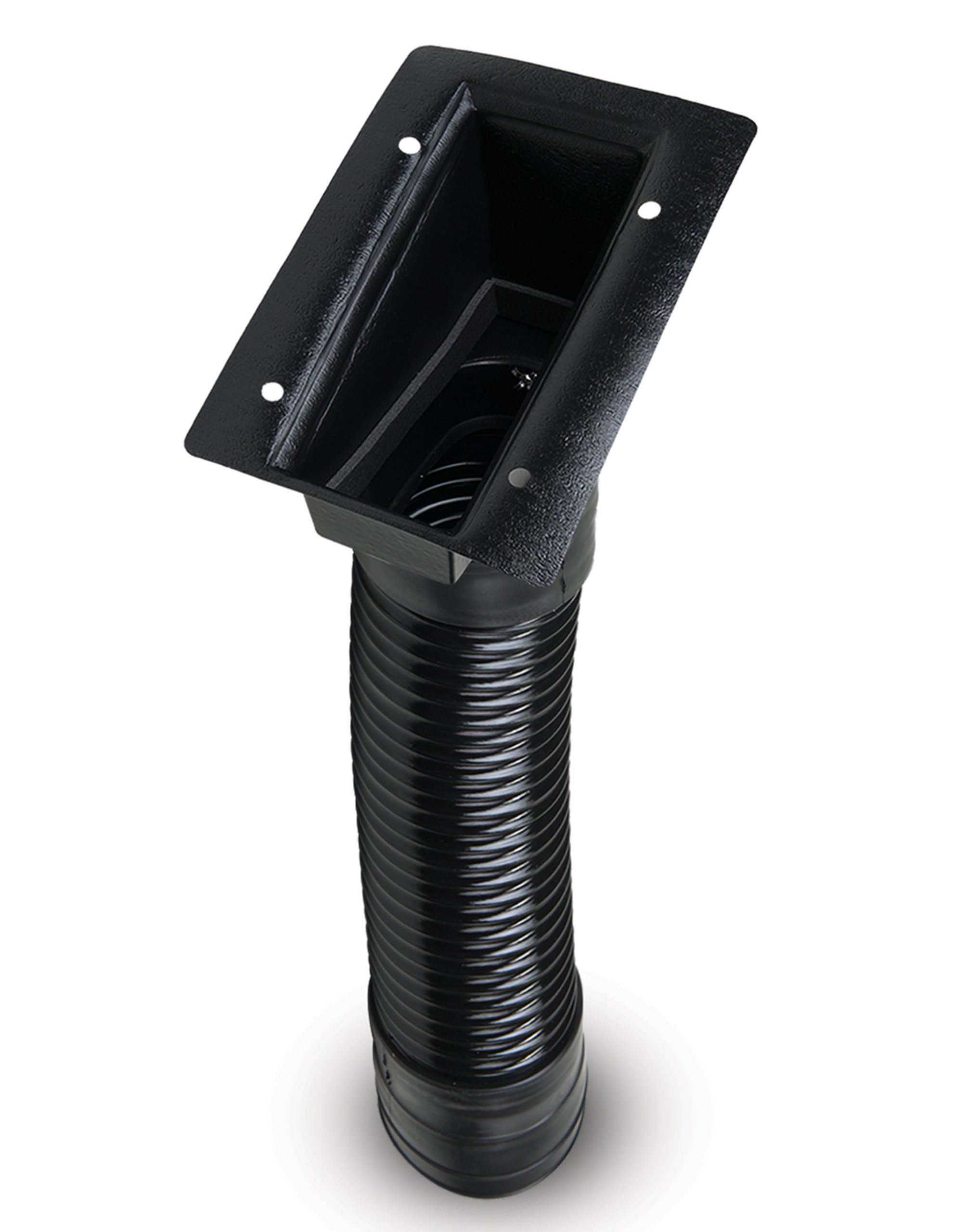

Soil Pipe Adaptor Kit RSPA
Connects standard 110mm pipework to HD TV10/6 and HD TV10/8 vents. May be used for soil ventilation or mechanical extraction. Ventilation Area 8,000mm²

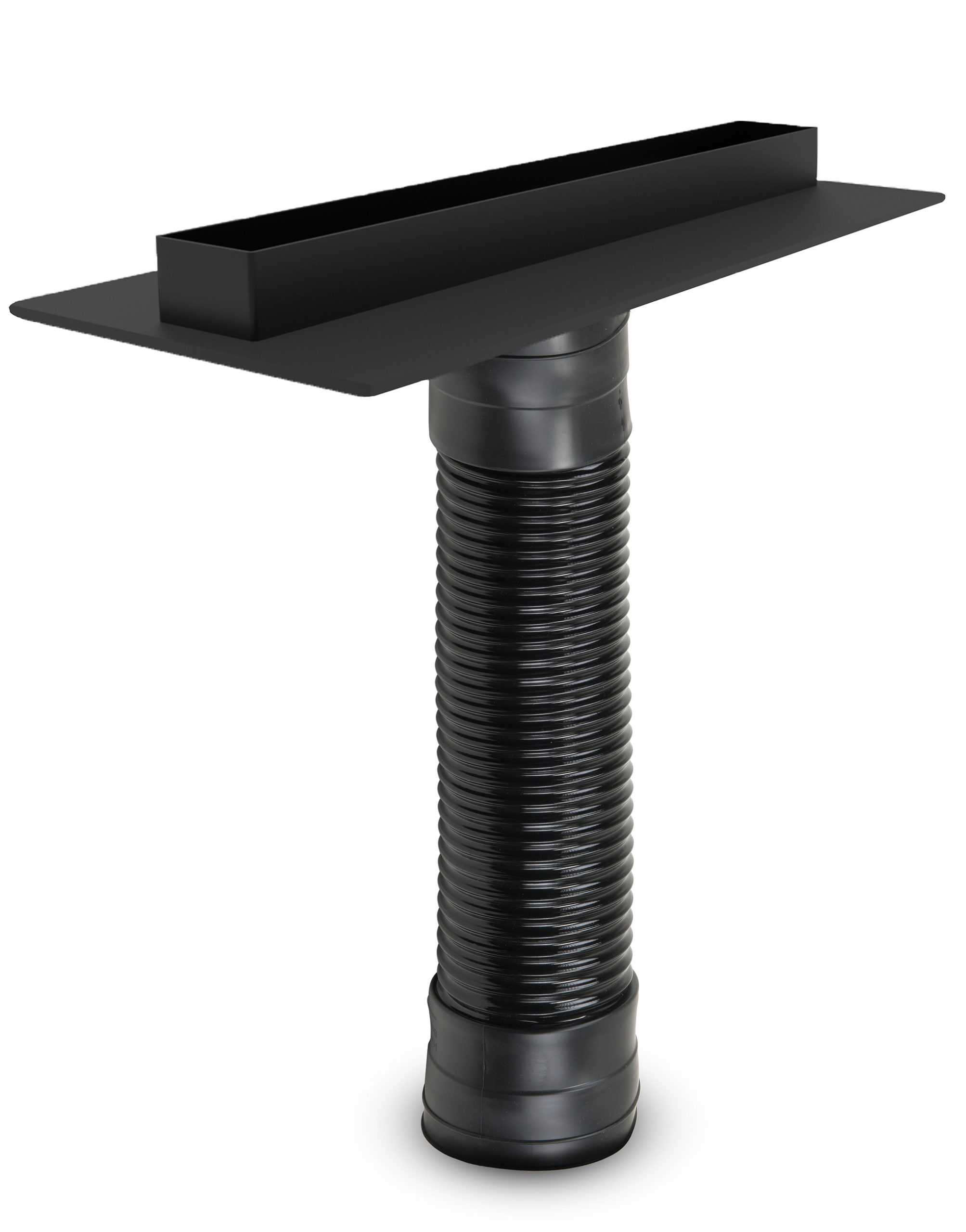

Soil Pipe Adaptor Kit PCSPA
Soil Pipe Adaptor Only PCA
Connects standard 10mm pipework to HD TV10/5 vents in pairs. Suitable for soil ventilation only.
Ventilation Area 4,000mm²

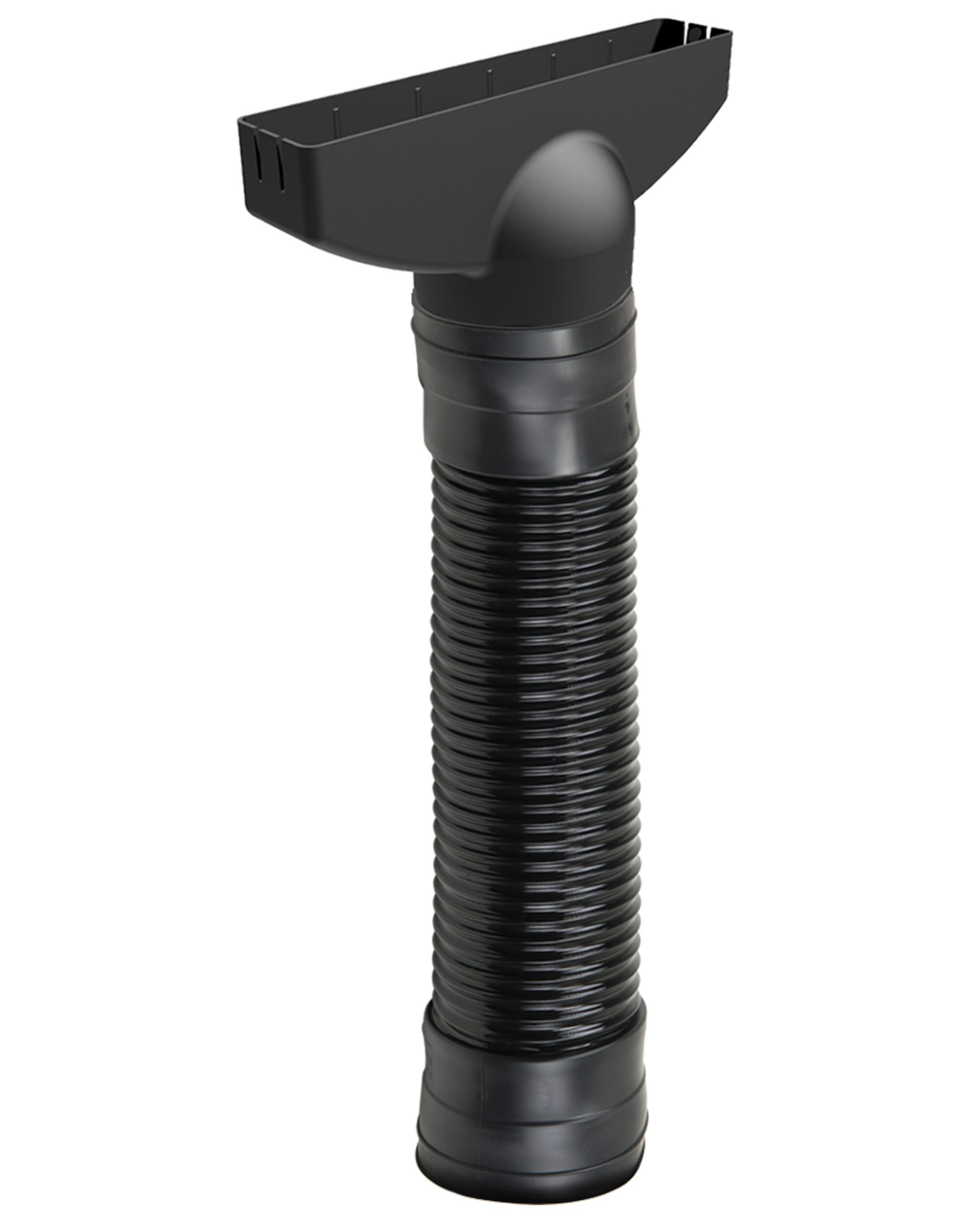

Soil Pipe Adaptor Kit DPCSPA
Soil Pipe Adaptor Only DPCA
Connects Standard 110mm pipework to the HD TV10/9, HD TV10/10 and HD TV10/11 vents. May be used for soil ventilation and mechanical extraction. Ventilation Area 6,100mm² (or 8000mm² for TV10/11)
Slate Vent Adaptors

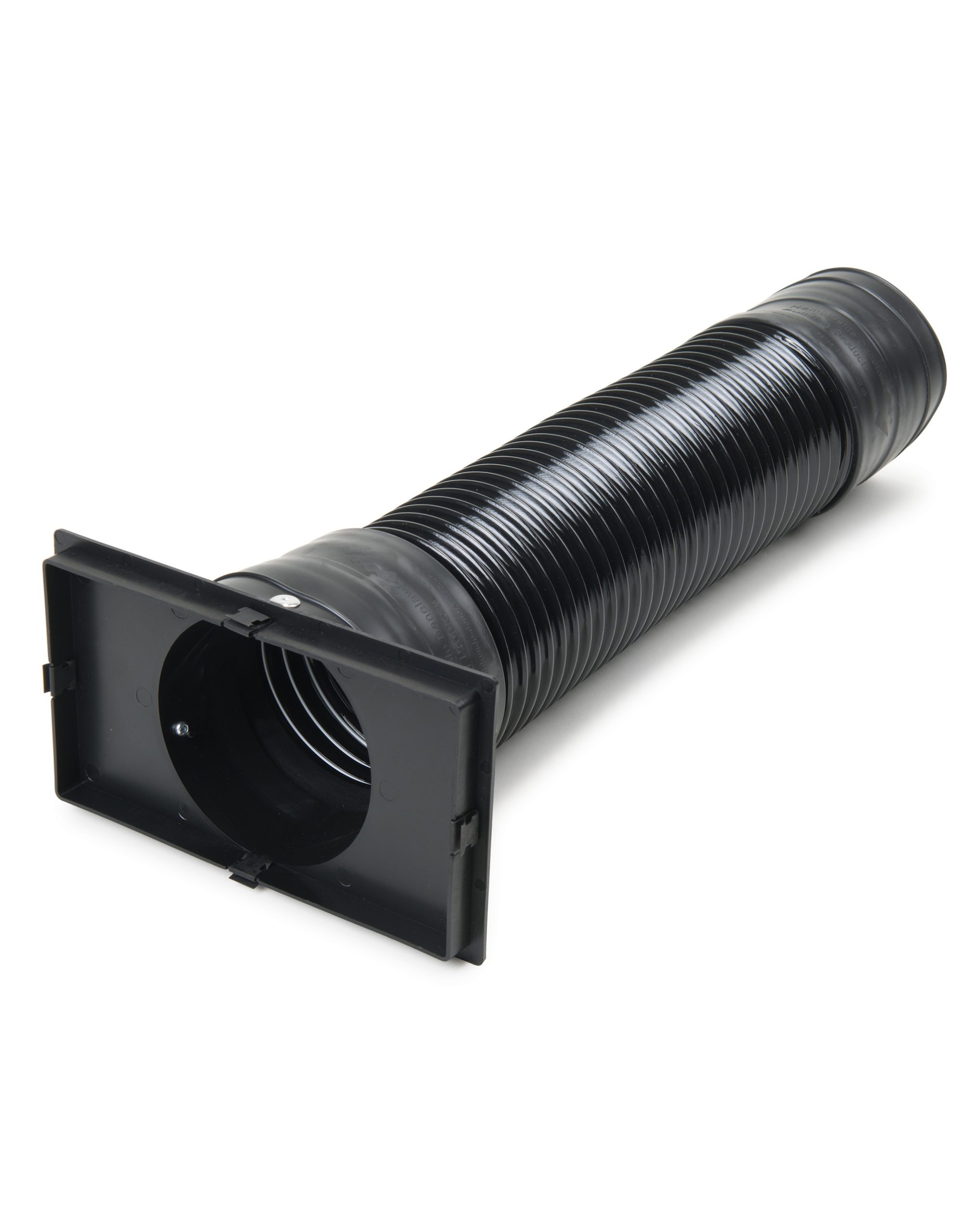

Soil Pipe Adaptor Kit ILSPA
Soil Pipe Adaptor Only ILA
Connects standard 110mm pipework to HD ILSRV10/20 & HD ILSRV10/24, including blanking plug. May be used for soil ventilation and mechanical extraction. Ventilation Area 8,000mm²

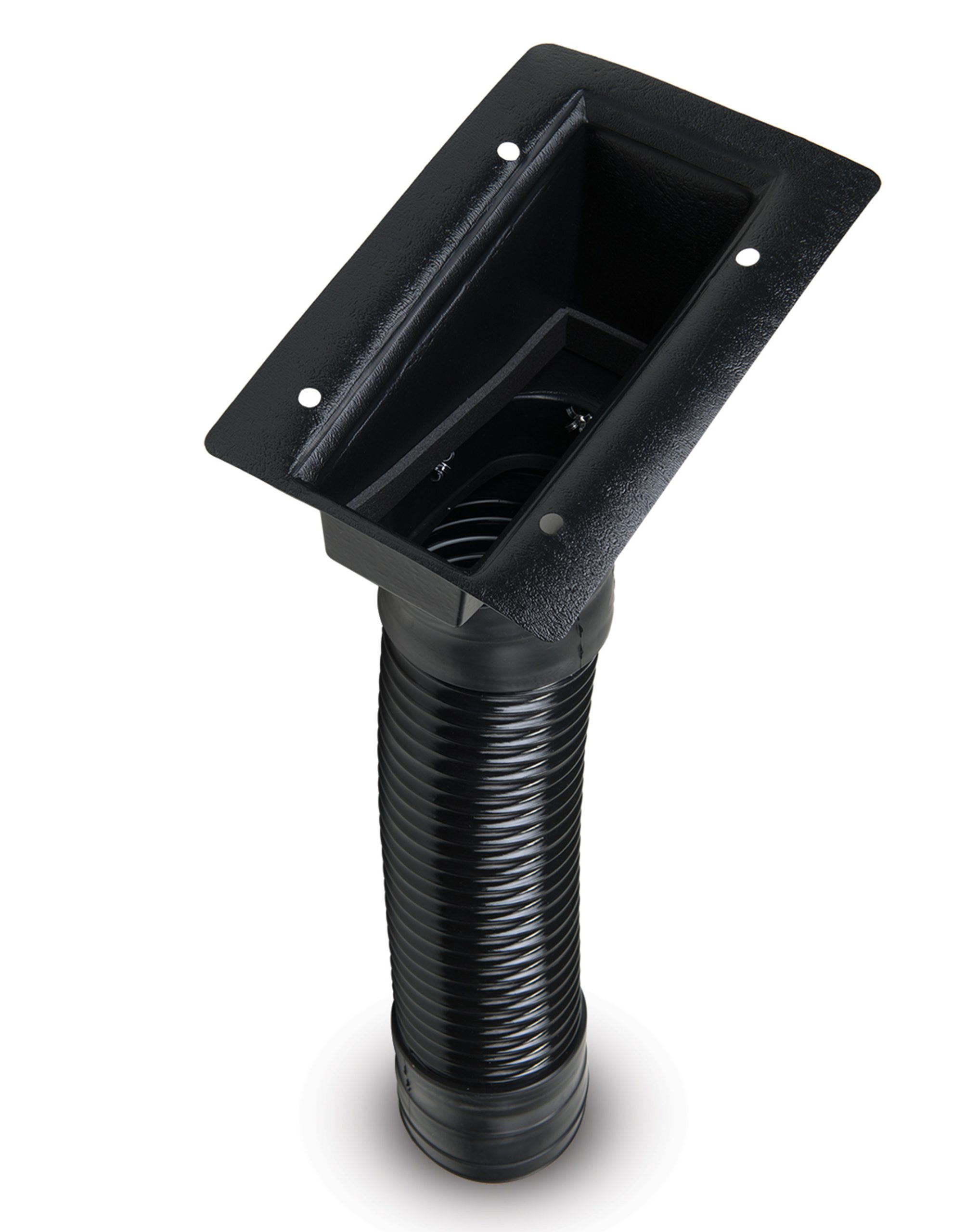

Soil Pipe Adaptor Kit ILSPAU
Soil Pipe Adaptor Only ILAU
Connects standard 110mm pipework to the 10,000mm² HD ILSRV10U vent. May be used for soil ventilation or mechanical extraction.
Ventilation Area 8,000mm²

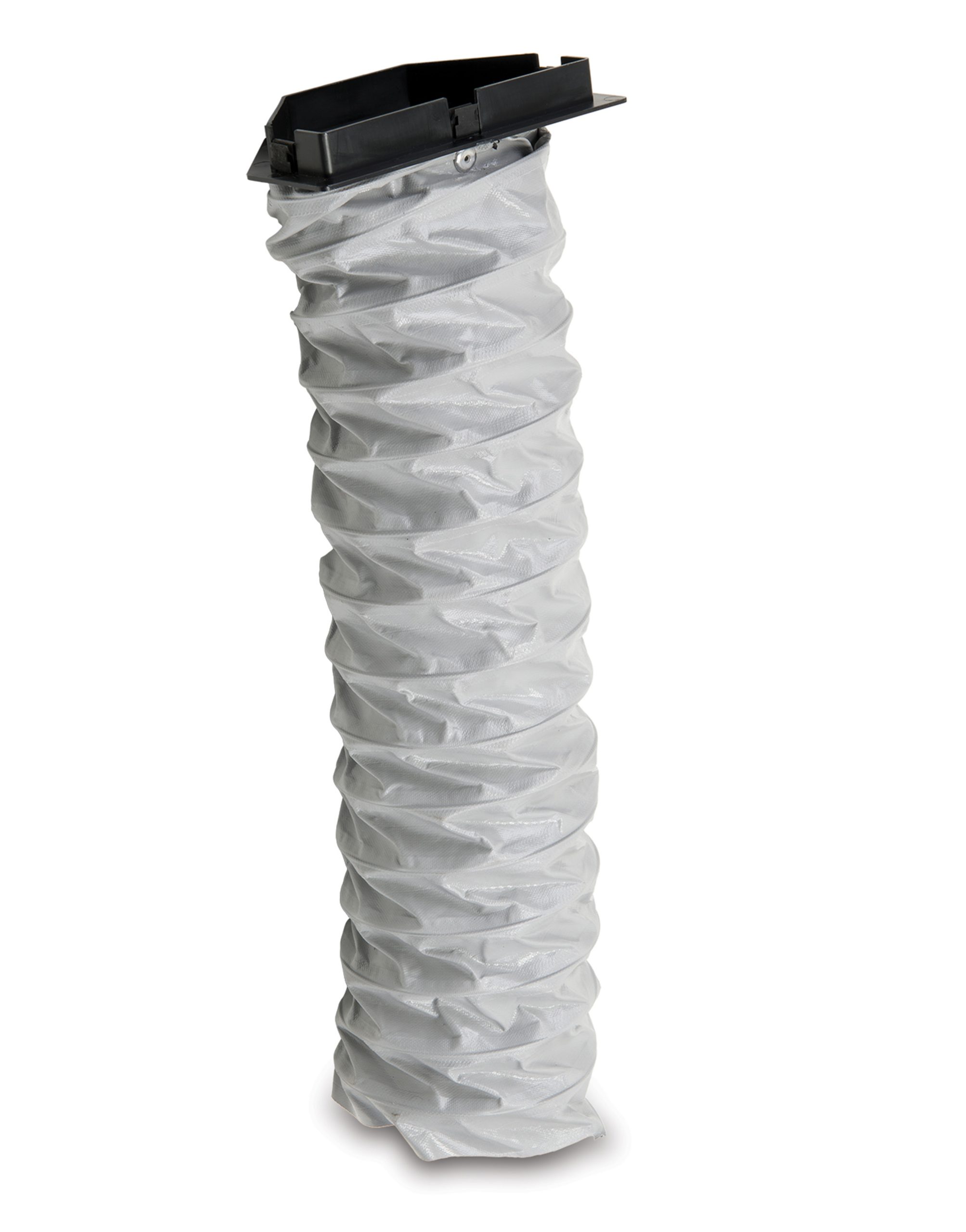

Soil Pipe Adaptor Kit SPA
Connects standard 110mm pipework to 10,000mm² vent. May be used for soil ventilation and mechanical extraction with HD SRV10U, SRV10/20.
Ventilation Area 8,000mm²

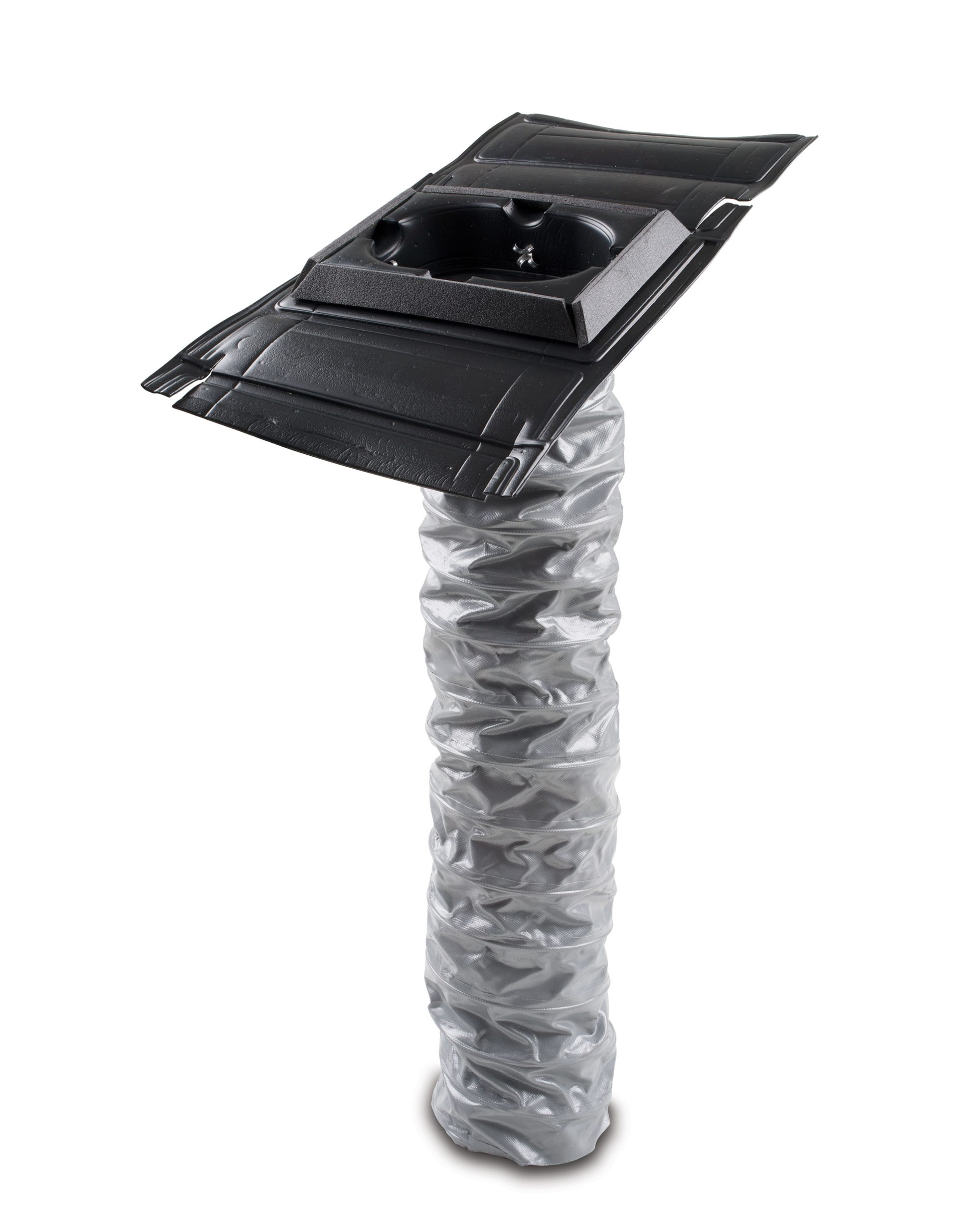

Soil Pipe Adaptor Kit SPA680
Connects standard 110mm pipework to 20,000mm² vent. May be used for soil ventilation and mechanical extraction with HD SRV680 vent. Available only as kit. Ventilation Area 8,000mm²

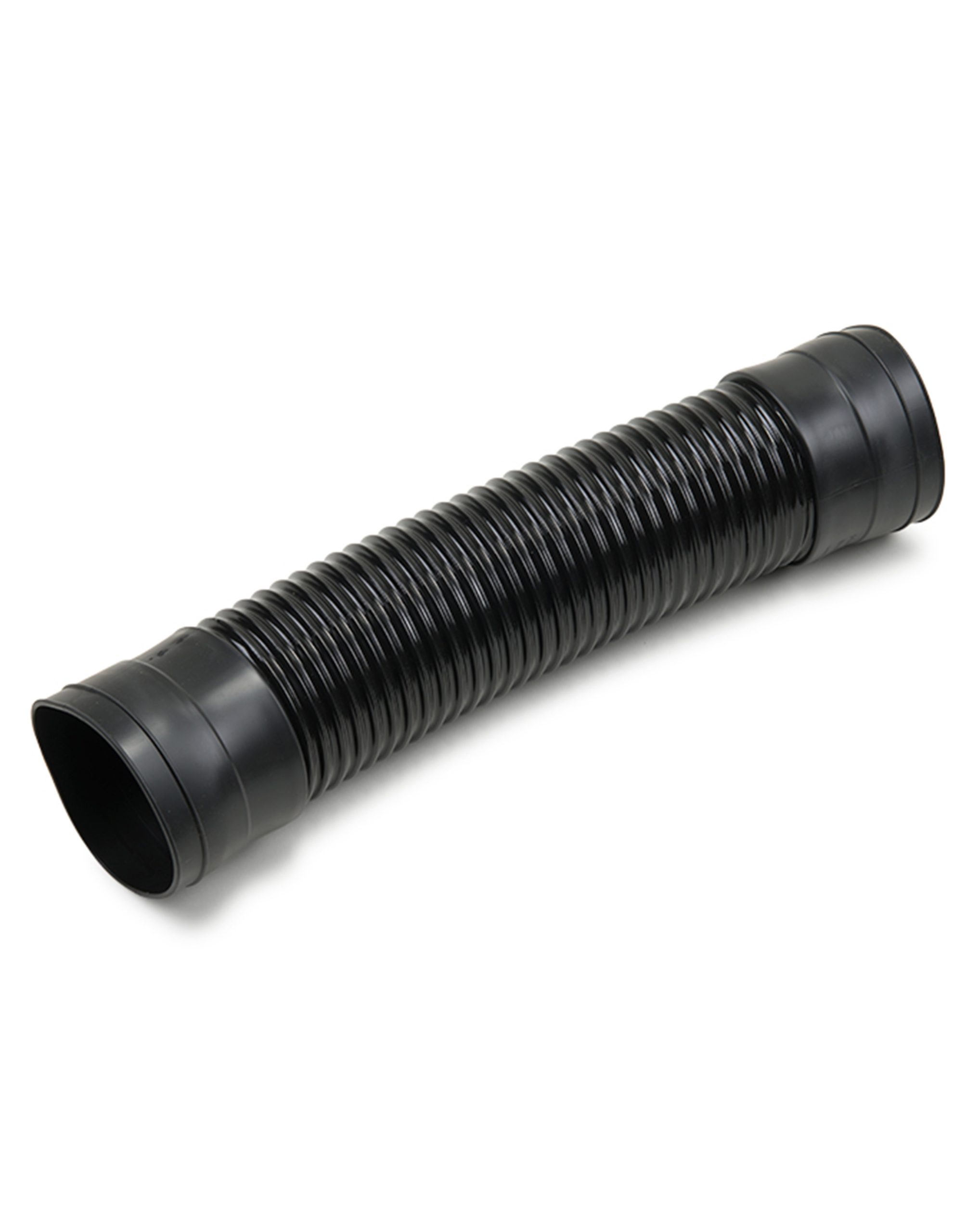

Flexi Pipe Connector (For Extensions)
FPC
Flexi Pipe Connector with Jubilee Clip
JC/FPC
Flexi pipe can be used as an extension to all HDL Soil Pipe Adaptor kits. Suitable for external fit to standard 110mm plastic pipes for soil ventilation and mechanical extraction. Length 510mm
